Car Hydraulic Hollow Steel Pipe 15mm Cold Finishing EN10305 E235 E355 Material

Product Categories
Jiangsu Hongbao Group Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

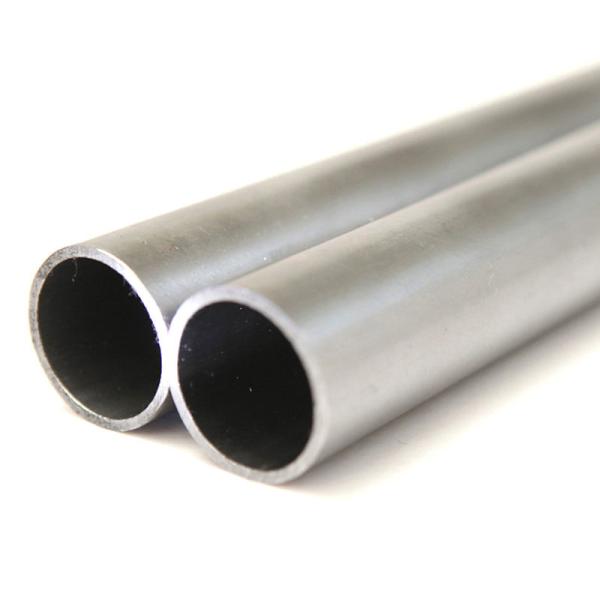

Car Hydraulic Hollow Steel Pipe 15mm Cold Finishing EN10305 E235 E355 Material

Brand Name : Hongbao

Model Number : HBHST-1

Certification : TS16949,DNV,PED,ISO,TUV,LR

Place of Origin : Jiangsu, China

MOQ : 1 ton

Price : Negotiable

Supply Ability : 30000MT per year

Delivery Time : within 50 days

Packaging Details : Original packaging according to the customers Export standard package in bundled or as required.

Brand : Hongbao

Certificate : TS16949,DNV,PED,ISO,TUV,LR

Material : ST37.4,ST52.4,E235,E355,26MnB5,34MnB5

OD : 6-120mm

Thickness : 0.5-15mm

Length : 12000mm Max

Shape : Round

Type : Welded or Seamless

Contact Now

EN10305 E235 E355 Cold Finishing Hollow Steel Round Tube For Car Hydraulic System

Description:

Product Name
E235 E355 Precision Steel Tube
Material
Carbon Steel, Alloy Steel,etc
Technique
Cold Rolled, Cold Drawn
Color
Black, Natural or As per customer's Request
Standard
DIN EN GB ISO JIS BA ANSI
Grade
ASTM A 106 GR A & B, A 53 GR A & B, ASTM A 333, Gr 1 to 6 (IBR & NON IBR),APL 5L GR.A & B,API 5 L GR.X-42,X-46,X-52,X-56,X-60,X-65 & X-70 IN PSL 1 & PSL 2;
ASTM A 335, GR P 1, P 2, P 5, P 9, P 11, P 12, P 22, P 91, GR T 1, T 2, T 5, T 9, T 11, T 12,T 22, T 91(IBR & NON IBR);
S10C,S15C,S20C,S45C, St37,St35.8,St45-8,St52,St52.4,etc.
Shapes
Round,Square,Rectagular,Oval,Special Shape according to csutomer's requirement
Outer Diameter(OD)
2~406mm; DN6~DN400
Wall Thickness(WT)
1~60mm; SCH5S~SCH40~SCH60~SCH80~XXS
Tolerance
According to standard or Customized
Length
Fixed Length: 5.8m, 6m, 7m,can cut to be short parts
Random Length or as request
Surface
Bare,Galvanized,Painted,Oiled,Chrome,etc.
Marking
Product,Size,Heat No.According to customer's demand
Ends
Plain ends,Bevelled ends,Square cut
Application
Machinery,Bearing,Hydraulic equipment, Automobile parts, Steel sleeve,Military,Etc.
Delivery Condition
BK(+C), BKW(+LC), BKS(+SR), GBK(+A),NBK( +N)

Production Process:
Cold rolling by Cold pilger machine and Cold rolling machine
Size: 6-350mm

WT: 1.0-35mm


1. Standard:
EN10305-2 Cold Drawn Precision Seamless Steel Pipes


2. Steel Grade:
E155,E195,E235,E275,E355, other materials upon agreement with customers.


3. Production method:
Cold drawn on the welded steel tubes, to reach high accuracy on the OD and WT tolerance

4. Packing:
In Hexagonal Bundles, with anti-rust oil protection, with seaworthy packing


5. Deliver condition:
1) +C No heat treatment after the final cold drawing process
2) +LC After the final heat treatment there is a suitable drawing pass
3) +SR After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere
4) +A After the final cold drawing process the tubes are annealed in a controlled atmosphere
5) +N After the final cold drawing operation the tubes are normalized in a controlled atmosphere


Product Tags:

Car Hydraulic Hollow Steel Pipe



EN10305 Hollow Steel Pipe



Hollow Steel Pipe 15mm


China Car Hydraulic Hollow Steel Pipe 15mm Cold Finishing EN10305 E235 E355 Material factory

Car Hydraulic Hollow Steel Pipe 15mm Cold Finishing EN10305 E235 E355 Material Images
